2012 Simulated Emergency Test


Nov 8 2012

2012 NC SET

Session 2, November 10, 2012



Here is the last, final comments preceding Saturday's NC SET-2

The overall intent is to get our folks conversant-with and comfortable-with operating within the Winlink system environment. Basically, it's email via HF radio.

So, here are the final suggestions:

Do it right. Send your traffic via RF and NOT Telnet. For this exercise, all messages will be vetted. The SHA-1 hash is a part of the mechanism.

We suggest that you include a "real" email address as a cc: to your message. The validation process for this stage of our SET is detailed and we will not acknowledge or respond quickly. We may need a day or more to sort-out the traffic. When you receive your "cc:" message you will know that your transmission was successful.  NOTE: do not "cc:" to your Winlink address as a recursive message is not allowed.

To date, this has been a rewarding process. Lots of folks have applied the time to learn the mechanism and are now ready to add this tool to their list of capabilities. This is a significant achievement.

Winlink is used by a huge number of State and Federal Agencies and is included in the NCEM Strategic Communications Plan. You need to have a presence and capability, here.



73,

Tom Brown N4TAB

NC RACES Officer

NC ARES SEC

NC AUXCOMM Coordinator





November 7, 2012

2012 NC SET - Second Session

Saturday, November 10, 2012

0900 - 1200 HRS



This is the second of three (3) information releases regarding the 2012 NC SET, Second Session.



Second Information Release - Wednesday, November 7, 2012



Messages from each Area should contain at least the content as shown below. Additional info my be included, such as weather, a faux situation report, small attachments, etc. Each AREA may originate as many messages as they desire and the messages may originate from any operator.



NC ARES Areas

MESSAGE CONTENT

AREA 1

This is a Drill



This message is being sent from an operator in NC ARES AREA 1 and is being sent to a Winlink RMS via RF.

2572f32147684ec59685e523c13ce72dd70878ea

AREA 2

This is a Drill



This message is being sent from an operator in NC ARES AREA 2 and is being sent to a Winlink RMS via RF.

6366a52b0d37756eb9501e645569f1548733ac7e

AREA 3

This is a Drill



This message is being sent from an operator in NC ARES AREA 3 and is being sent to a Winlink RMS via RF.

26153e93683fa8b3b27db1edd7138172734ef8f9

AREA 4

This is a Drill



This message is being sent from an operator in NC ARES AREA 4 and is being sent to a Winlink RMS via RF.

2e782f9fdfc7f87149b5c60b878da5e146a772e3

AREA 5

This is a Drill



This message is being sent from an operator in NC ARES AREA 5 and is being sent to a Winlink RMS via RF.

d81df8c166f048cdb630363cc27d34e169ff1584

AREA 6

This is a Drill



This message is being sent from an operator in NC ARES AREA 6 and is being sent to a Winlink RMS via RF.

5c6bfefc0569a342936f7e53477c67c923990274

AREA 7

This is a Drill



This message is being sent from an operator in NC ARES AREA 7 and is being sent to a Winlink RMS via RF.

adf1cfce8123a151381d08fd8894abb0c9c861a3

AREA 8

This is a Drill



This message is being sent from an operator in NC ARES AREA 8 and is being sent to a Winlink RMS via RF.

abb880f71709f7c395017e6ddf081dd223722274

AREA 9

This is a Drill



This message is being sent from an operator in NC ARES AREA 9 and is being sent to a Winlink RMS via RF.

d8e56bac739510f928aa7692d5d6d9505bdfa5d7

AREA 10

This is a Drill



This message is being sent from an operator in NC ARES AREA 10 and is being sent to a Winlink RMS via RF.

5de3795d2f1aba069e32d30da7ef31bb6a156c32









AREA 11









This is a Drill



This message is being sent from an operator in NC ARES AREA 11 and is being sent to a Winlink RMS via RF.

11394575bda5b509a08360502d01b8b4054a4d81

AREA 12

This is a Drill



This message is being sent from an operator in NC ARES AREA 12 and is being sent to a Winlink RMS via RF.

79098361ee5827ff4c98a4b1f811bcada4e12f10

AREA 13

This is a Drill



This message is being sent from an operator in NC ARES AREA 13 and is being sent to a Winlink RMS via RF.

c9c753cf1ee7e1eac3cdae8e8f22b17f78fbdfa5

AREA 14

This is a Drill



This message is being sent from an operator in NC ARES AREA 14 and is being sent to a Winlink RMS via RF.

2012418a85791e056d5c31724d1a0a77e00e5dd4

AREA 15

This is a Drill



This message is being sent from an operator in NC ARES AREA 15

 and is being sent to a Winlink RMS via RF.

eb24e00351730a787bd821ec7f127fab141a8504

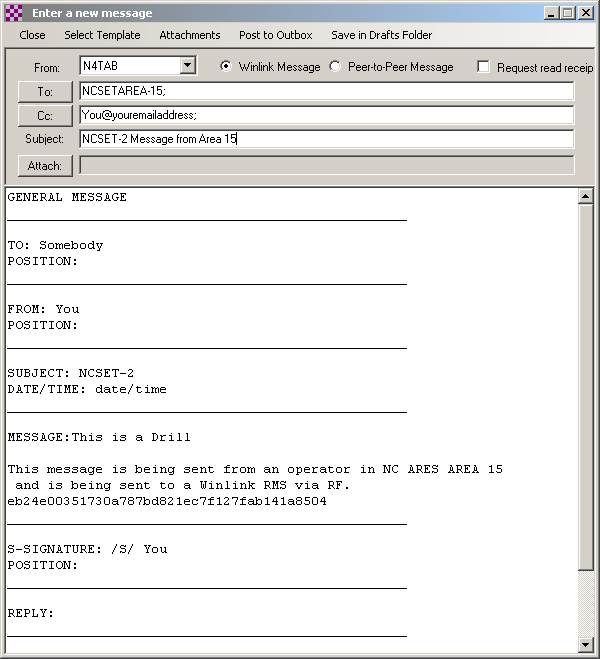

Here is an example of a message formatted to contain ICS-213 data:

Here is some text that you can paste into the RMS Express message window to create the ICS-213 lookalike format. Then paste-in your message content as I did in the image above.







GENERAL MESSAGE

__________________________________________________



TO:

POSITION:

__________________________________________________



FROM:

POSITION:

__________________________________________________



SUBJECT:

DATE/TIME:

__________________________________________________



MESSAGE:

__________________________________________________



S-SIGNATURE: /S/

POSITION:

__________________________________________________



REPLY:

__________________________________________________



DATE/TIME:

S-SIGNATURE: /S/

POSITION:

__________________________________________________



This Exercise is intended to help get our statewide organization versed in the use of Winlink.



We will post a third and final information release on Thursday, November 8, 2012. That will reiterate the rules about this exercise.



We hope that everyone has fun with this. This is a powerful messaging tool and messaging system that is absolutely invaluable during real-world Incidents and Events.




Nov 6, 2012

2012 NC SET - Second Session

Saturday, November 10, 2012

0900 = 1200 HRS



This is the first of three (3) information releases regarding the 2012 NC SET, Second Session.



First Information Release - Tuesday, November 6, 2012



Building upon the successful October 13th Session wherein the basic capability to operate in the Winlink System was achieved, this November 10th session will add a real-world component. For this session, we will send tactical messages as well as a provided formal ICS-213 message that will simulate traffic from a Served Agency. For each of the 15 Geographic Areas in NC ARES, there will be a unique message and a unique Winlink address for traffic from that Area.



Example: Any messages sent from any station in Henderson County will send to the AREA 15 Winlink address listed below. Similarly, those messages must include (at least) the content of the Area 15 message that will be provided in the Second Information Release on Wednesday, November 7, 2012



As a first step, note the email addresses that will be the target of each Area's messages:

NC ARES Areas

Target Winlink address for NCSET-2

AREA 1

ncsetarea-1@winlink.org

AREA 2

ncsetarea-2@winlink.org

AREA 3

ncsetarea-3@winlink.org

AREA 4

ncsetarea-4@winlink.org

AREA 5

ncsetarea-5@winlink.org

AREA 6

ncsetarea-6@winlink.org

AREA 7

ncsetarea-7@winlink.org

AREA 8

ncsetarea-8@winlink.org

AREA 9

ncsetarea-9@winlink.org

AREA 10

ncsetarea-10@winlink.org

AREA 11

ncsetarea-11@winlink.org

AREA 12

ncsetarea-12@winlink.org

AREA 13

ncsetarea-13@winlink.org

AREA 14

ncsetarea-14@winlink.org

AREA 15

ncsetarea-15@winlink.org



2012 NCSET UPDATE #1
Oct 9, 2012

Instructions for formatting Winlink messages for the 2012 NC SET, Event 1

  • Messages can be tactical or tactical with attachments (213 form).
  • The main criteria is that the messages must enter the Winlink system via radio, through a Winlink RMS, not Telnet or standard email.
  • Messages can originate from individuals or from an ARES or MARS group.
  • We don't care if each participant sends 1 or 100 messages. Once you get the process in-hand, practice your new art.

For this first event, the winlink address is ncset-1@winlink.org

Each message sent must have the following in the subject line with any "real" subject appended. //WL2K R/ NCSET-1

EXAMPLES:
//WL2K R/ NCSET-1 message from XXX County or
//WL2K R/ NCSET-1 from callsign

  • Messages should also include THIS IS A DRILL, or TEST MESSAGE in each document sent.
  • Messages should identify the sender and any group for which the message is being sent.
  • Note: We will not answer queries contained in messages or make replies to message content for this first event. ACKs will be automated.
  • We will accept and acknowledge messages from 0900 --1200 HRS. If you send your traffic early, you will be finished early.
  • Remember that this is a "tune-up" event to learn how to access the Winlink system and successfully originate messages. There will be a second, follow-on event during November 2012 that will add some realism around a scenario.

2012 NC SET Background Information
Sep 28, 2012

SET-2012.  Winlink, email via HF radio, serves a central role in radio business conducted by ARES/RACES/AUXCOMM operators in support of NCEM and many counties. Winlink supports simple and complex messaging and supports the use of attachments, just as does the regular email system. Winlink has been installed at NCEM facilities since 2008 and also at a number of County facilities. Many individual operators have learned to include, use and utilize Winlink in their operations. Winlink can be utilized by almost any HF-capable operator. If you're using PSK31 or similar soundcard-based protocols, Winlink is an easy step. The Winlink organization has authored and provides at no cost, a couple of client (user) programs - RMS Express and Paclink -  that can be downloaded from ftp://autoupdate.winlink.org/User Programs/ (RMS_Express_Setup_1-2-5-0.zip and Paclink_setup_4-3-3-0.zip). A good how-to about Winlink is available here: http://www.dtreg.com/Getting_Started_with_Winlink_and_WINMOR.pdf .

As announced at least a half-dozen times on successive Mondays over a 2 month period on the Tar Heel Emergency Net, NC ARES will conduct the 2012 SET in 2 or more phases and on 2 or more Saturdays. This year, we are focusing on Winlink and its role in NC and Regional EMCOMM activities.

First Event
- October 13, 2012, 0900 HRS DST. This will be a tune-up event intended to have operators learn/prepare to use the Winlink radio-to-email system. Each County will identify one or more operators that have Winlink HF capability using Pactor or Winmor (soundcard) protocols and using either RMS Express, Paclink or Airmail clients. Simple tactical messages will be sent via local means (VHF/UHF, cellphone, PSTN)  to the County WL2K station who will put that traffic into Winlink email messages and send those messages to a specified email address.

Second Event
- November 10, 2012, 0900 HRS EST.  This event will focus on using Winlink to send formal traffic in ICS-213 format from Counties to specified email addresses. Individual messages may originate from numerous operators who will route them to the designated Winlink-equipped stations. The Winlink-equipped stations will forward the messages to specified email addresses using Winlink HF. We will also provide a specific message and a small attachment to each County and those must be sent as part of the exercise.

Frequencies for local traffic can be VHF/UHF, repeater or simplex, FRS, cellphone, etc. Frequencies for Winlink will be those as proposed by the Winlink user client (RMS Express, for example). If your organization has MARS operators available, they can use MARS Winlink frequencies. Similarly, Counties that have MARS Agency licenses can use the MARS Winlink frequencies.

Depending on the success of the two Events mentioned, we may elect to conduct a third Event in December, 2012.

OTHER ARES INFORMATION.
The NC AUXCOMM database lists more than 500 NC NIMS/ICS-compliant operators.  This is a really great achievement!  Thanks to all that have recognized the requirement and taken the small bit of time to complete the courses. I do find it interesting that a number of jurisdictions, in their monthly reports, show 20-30+ members and only 1 or 2 in the database. It's interesting in that only those who have completed the NIMS/ICS courses can really do much, other than operate in public-service events. What happens if an Incident occurs in your county and you need several days of 24 hour operations? Where will your operators come from?

Also, for those who may not have noticed, the AUXCOMM.US site now also hosts separate databases for South Carolina and Colorado. Three other large states are currently evaluating the use of our database structure for their own operations.

Western Branch ARES/AUXCOMM meeting in Morganton on Saturday, October 27, 2012. Last year, we had record attendence and covered a lot of subject matter. We have a good program planned for this year, as well.

Thanks and 73,  Tom N4TAB, NC SEC.
